Printing method / Cutting method | Piezoelectric inkjet / Grit roller feed | |||
| Acceptable media | Width | 10.2 to 54 in. (260 to 1371 mm) | 7.2 to 30 in. (182 to 762 mm) | |
| Thickness | Printing: Maximum 39 mil (1.0 mm) with liner Cutting : Maximum 16 mil (0.4 mm) with liner and 9 mil (0.22mm) without liner | |||
| Roll outer diameter | Maximum 8.3 in (210 mm) | Maximum 7.1 in (180 mm) | ||
| Roll weight | Maximum 66 lb. (30 kg) | Maximum 44 lb. (20 kg) | ||
| Core diameter | 2 in (50.8mm) or 3 in (76.2mm) | |||
| Printing/cutting width | Maximum 53 in (1346 mm) | Maximum 29 in (736 mm) | ||
| Ink cartridges | Type | Roland ECO-UV INK | ||
| Capacity | 220 ml (± 5 ml) | |||
| Colors | 5 colors + Clear coat (Cyan, Magenta, Yellow, Black, White and Clear coat) | |||
| Configuration | CMYK+Gloss+White, CMYK+White+White or CMYK+Gloss+Gloss | |||
| Ink curing unit | Built-in ultraviolet-light emitter (UV-LED Lamp) | |||
| Printing resolutions | 360×720 dpi, 720×1080 dpi, 720×1440 dpi, 1440×1440 dpi | 360×720 dpi, 720×720 dpi, 720×1440 dpi, 1440×1440 dpi | ||
| Acceptable blade tool | Roland CAMM-1 series cutter blade. | |||
| Cutting speed | 0.4 (10 mm/s) to 23.6 in/s (600 mm/s) (0.4 to 11.8 in/s in media feed direction) | |||
| Blade force | 30 to 300gf | |||
| Blade offset compensation | 0 to 0.0591 in (0.000 to 1.500 mm) | |||
| Software resolution (when cutting) | 0.000984 in/step (0.025 mm/step) | |||
| Distance accuracy (when printing) | Error of less than ± 0.3 % of distance traveled, or ± 0.012 in (0.3mm), whichever is greater. | |||
| Distance accuracy(When cutting) | Error of less than ± 0.4% of distance traveled, or ± 0.012 in (0.3 mm), whichever is greater. When distance correction ([CUTTING MENU] -[CALIBRATION]) has been preformed: error of less than ± 0.2 % of distance traveled, or ± 0.004 in (0.1mm), whichever is greater. | |||
| Repetition accuracy (When cutting) | ± 0.004 in (0.1mm) or less | |||
| Alignment accuracy for printing and cutting | ± 0.020 in (0.5mm) or less | |||
| Alignment accuracy for printing and cutting when reloading media | Error of less than ± 0.5% of distance traveled, or ± 0.012 in (3mm), whichever is greater | |||
| Media take-up system | Roll outer diameter | Maximum 8.3 in (210 mm) | Maximum 7.1 in (180 mm) | |
| Roll weight | Maximum 66 lb. (30 kg) | Maximum 44 lb (20 kg) | ||
| Interface | Ethernet (10 BASE-T / 100 BASE-TX, automatic switching) | |||
| Power-saving function | Automatic sleep feature | |||
| Power supply | Voltage and frequency | AC 100 to 240 V ± 10%, 50/60 Hz | ||
| Required power capacity | Maximum 5.5 A | Maximum 4.2 A | ||
| Power consumption | During operation | Maximum 490W | Maximum 370W | |
| Sleep mode | Approx. 15.3 W | Approx. 15.3W | ||
| Acoustic noise level | During operation | 64dB (A) or less | ||
| During standby | 40dB (A) or less | |||
| Dimensions (with stand) [6] | 115.2[W]x44.1[D]x49.6[H] in (2925[W]x1120[D]x1260[H] mm) | 86.6 [W] x 32.3 [D] x 49.6 [H] in (2200[W] x 820 [D] x 1260 [H] mm) | ||
| Weight (with stand) | 496 lb. (225 kg) | 390.2 lb. (177 kg) | ||

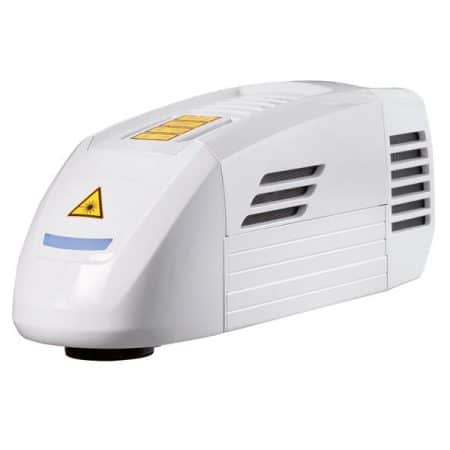

Sirolaser Starlight حکاکی لیزری
utput power 5 WLaser source Diode-pumped laser marker(Nd: YAG)Wavelength 1064 NmPulse frequency 1 – 50Diode output 9 WWorkin
تاپ کست ریختگری
*ریخته گری تحت فشار در خلاء Vacuum Pressure Casting – VPC** شرکت نوین ساخت سیس با بیش از 30 سال سابقه درخشان در صنایع همواره سعی بر این داشته بمن
Gravograph M10Jewel حکاکی مکانیکی
حکاکی مکانیکی](http://sis-co.net/fa/product-category-fa/all-products/usage/mechanical-engraving/) Inside engravingMin. – Max.outside engravingMin.
Schultheiss VPC040 ریختگری
*ریخته گری تحت فشار در خلاء Vacuum Pressure Casting – VPC** شرکت نوین ساخت سیس با بیش از 30 سال سابقه درخشان در صنایع همواره سعی بر این داشته بمن

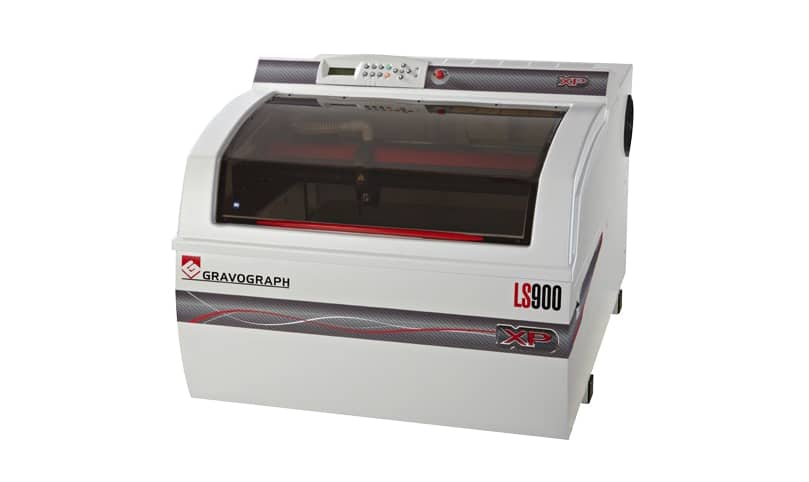

Gravograph LS900XP حکاکی لیزری
برش لیزری](http://sis-co.net/fa/product-category-fa/all-products/usage/laser-cutting/),[حکاکی لیزری](http://sis-co.net/fa/product-category-fa/all-pro
Roland VersaUV LEF-12/20 چاپ UV
odel VersaUV LEF-20VersaUV LEF-12Printing methodPiezoelectric inkjet / Table feed systemAcceptable mediaWidthMaximum 21.2 in. (538 mm)13.2 in. (

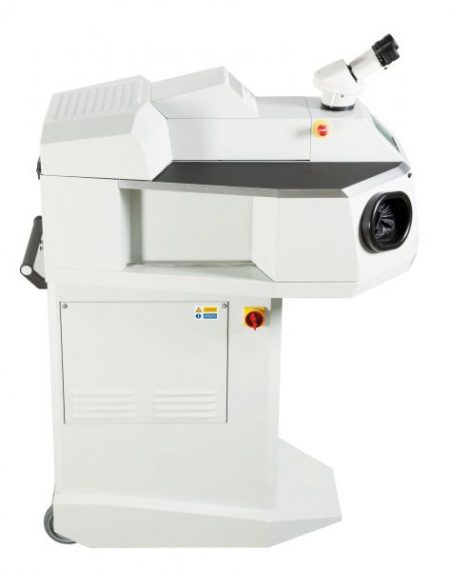

Sirolaser SL-50E جوشکاری
